Motion Control
D.A.V.E.
(Digital Animation Vision Enhancer)
RIGB
(Rig - B)

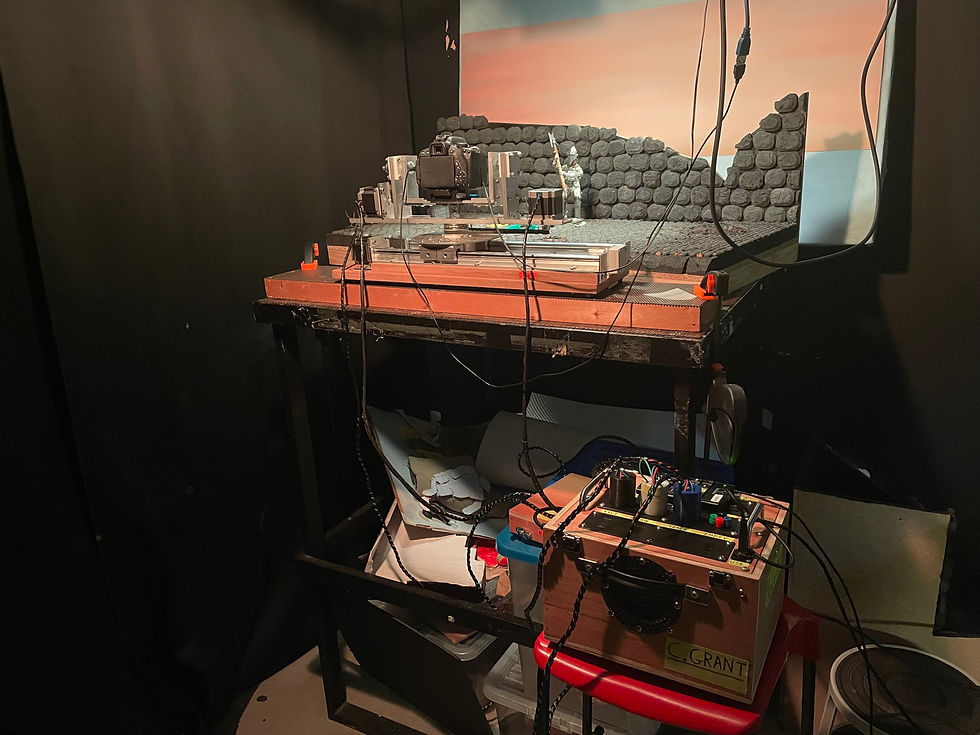

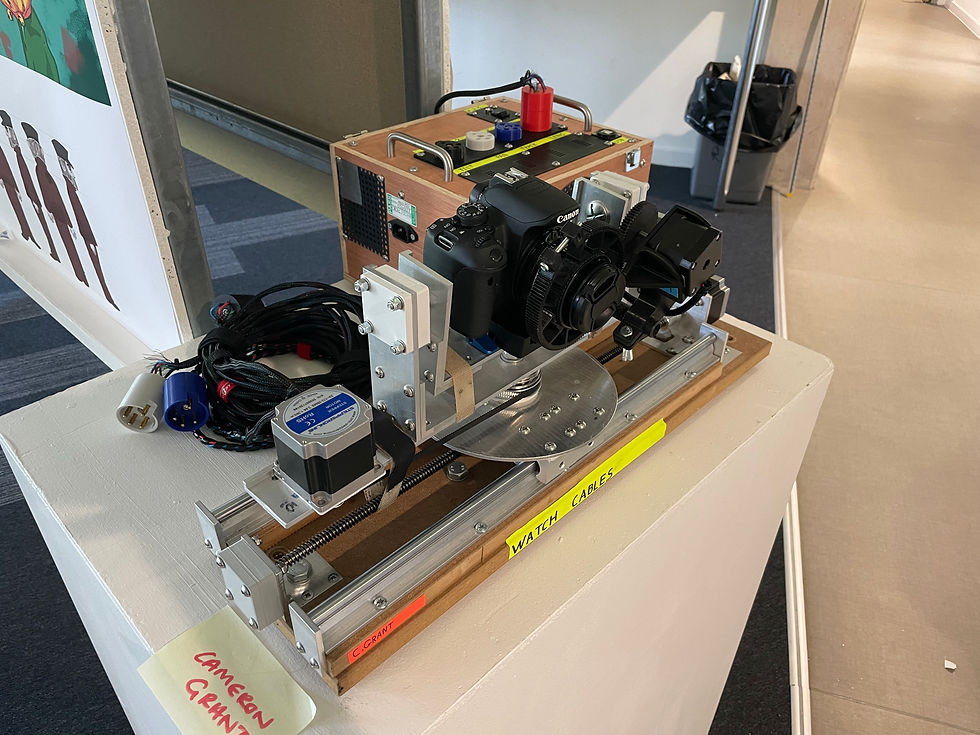

D.A.V.E. rig uses three Nema 23 and one Nema 17 stepper motors, powered by a 48 volt power supply and four DM542T motor drivers. These are controled by an Arduino Uno R3 board, which links the rig to Dragonframe.

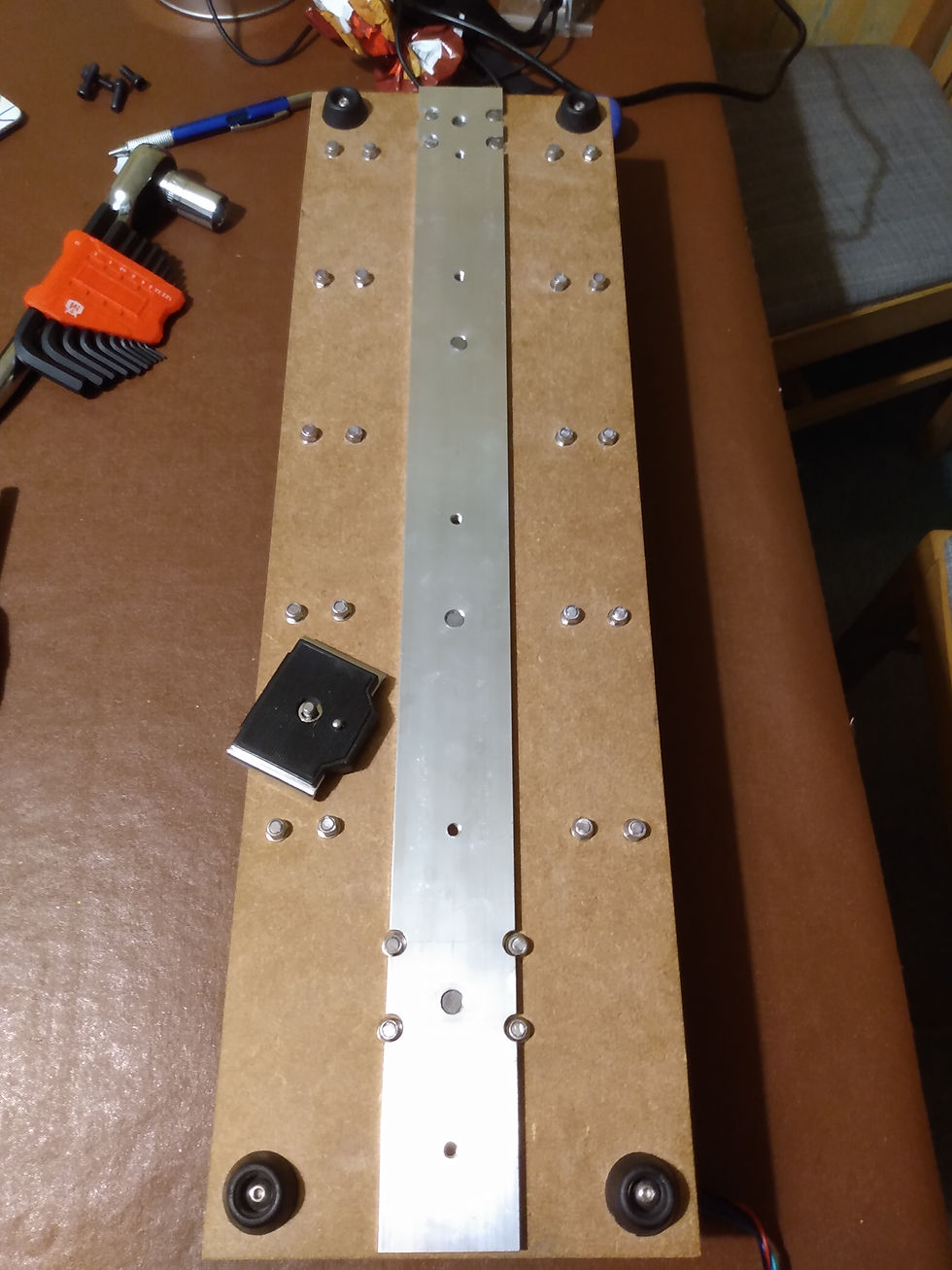

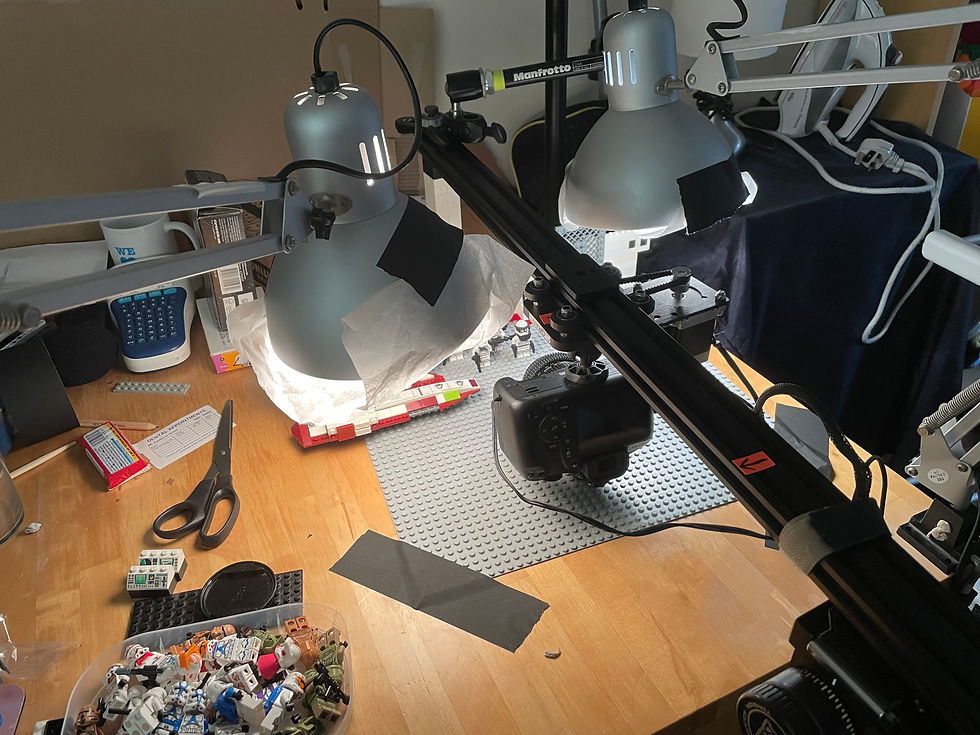

RigB is a single axis tracking rig with just under a metre of tracking distance. This rig uses a single Nema 23 motor, however I am planning on using a smaller motor to make it less cumbersome. This rig is also fully compatable with Dragonframe.
A huge thanks to Simon Tytherleigh for providing me with 3D printer models for the focus brackets and gears. Click the link to see more of his work.
​
Both rigs are fully compatible with Dragonframe's Arc Motion Control Workspace and can be easily programmed to do a camera move while setting up the shot.
